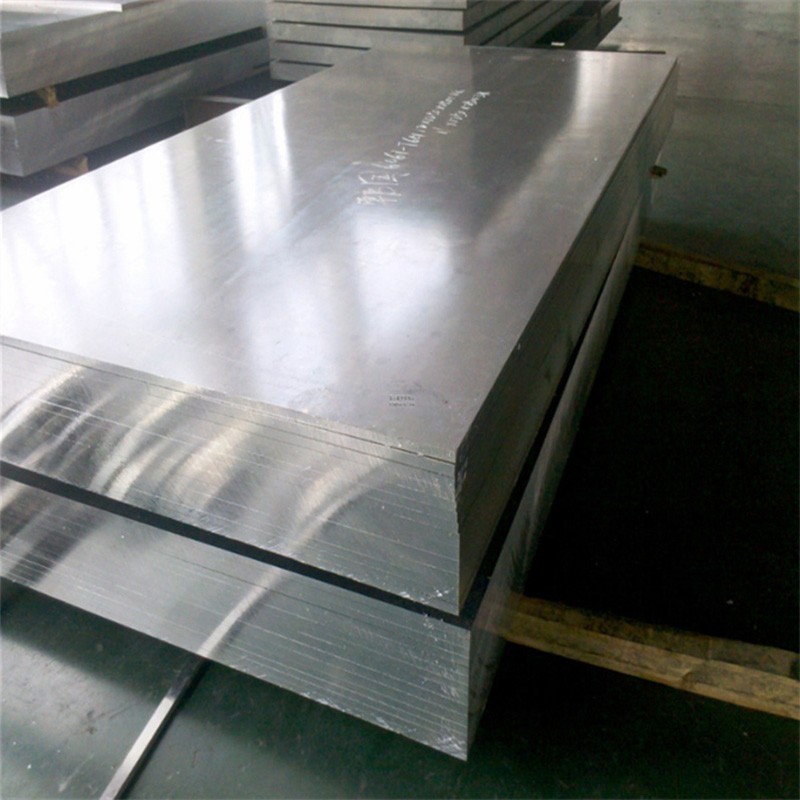

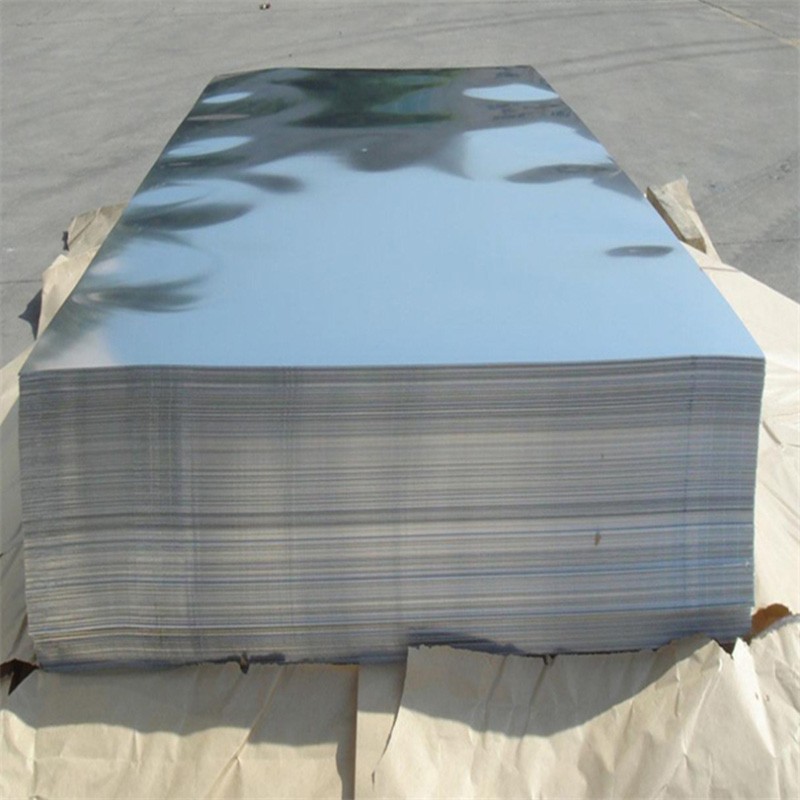

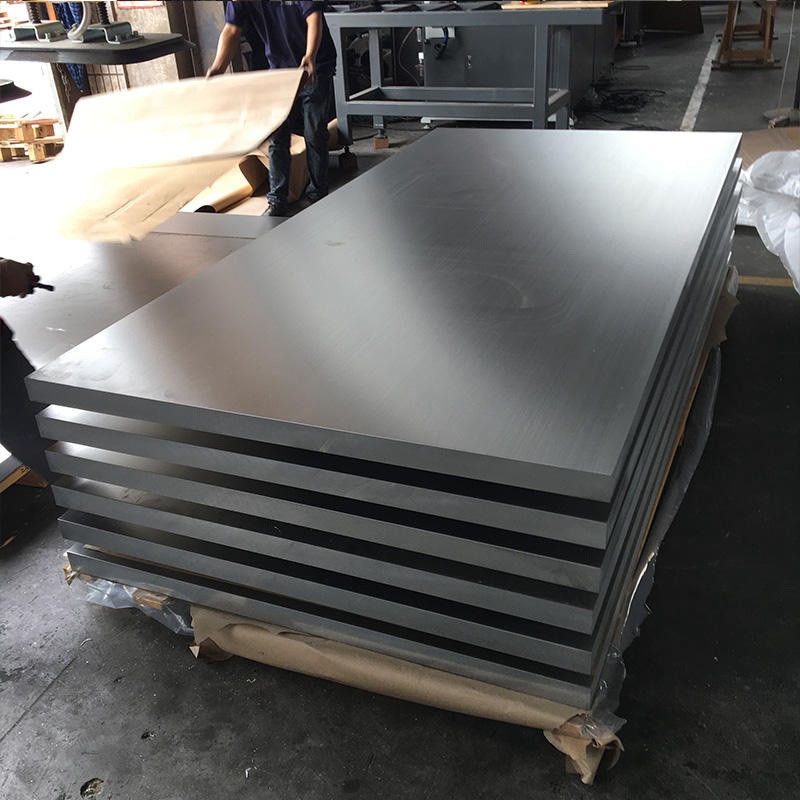

5052 aluminum plate contains 2.5% magnesium and 0.25% chromium.It has good workability, medium static strength, high fatigue strength, good weldability, and very good corrosion resistance, especially in marine atmospheres. It also has the low density and excellent thermal conductivity common to all aluminium alloys. It is commonly used in sheet, plate and tube form.
5052 Aluminum Plate Features:
Good Weldability. The addition of Cr in the 5052 aluminum sheet interacts with Mn, which can increase the strength between the base metal and the weld, thereby reducing the tendency of welding cracks and meeting various welding requirements.
Corrosion Resistance. Corrosion resistance is a typical characteristic of 5052 aluminum sheet. It has good corrosion resistance to the atmosphere, gasoline, food, organic acids, neutral inorganic salt solution, etc., and also has good corrosion resistance in dilute acids.
Good Plasticity. 5052 aluminum sheet is also a non-heat-treated alloy. Its mechanical properties are improved by cold working. And the 5052 aluminum sheet has good plasticity in semi-cold work hardening and low plasticity in cold work hardening.
Other Characteristics. In addition, the 5052 aluminum sheet also has a strong resistance to stress corrosion cracking, and can also be polished, anodized, etc.
5052 Aluminum Sheet Chemical Composition:
Si | Fe | Cu | Mn | Mg | Cr | Zn | Others | Aluminium min. | |
Each | Total | ||||||||
0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | 0.05 | 0.15 | Remainder |
5052 Aluminum Plate Mechanical Properties:
Alloy & Temper | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) min elongation | Elongation (% in 50mm) minimum for sheet or plate thicknesses shown | ||||
0.15- 0.32mm | 0.33- 0.63mm | 0.64- 1.20mm | 1.21- 6.30mm | 6.31- 80.0mm | |||
5052-O | 170 – 215 | 65 | 13 | 15 | 17 | 19 | 18 |
5052-H32 | 215 – 265 | 160 | – | 4 | 5 | 7 | 11 |
5052-H34 | 235 – 285 | 180 | 3 | 3 | 4 | 6 | 10 |
5052-H36 | 255 – 305 | 200 | 2 | 3 | 4 | 4* | – |
5052-H38 | 270 min | 220 | 2 | 3 | 4 | 4* | – |
