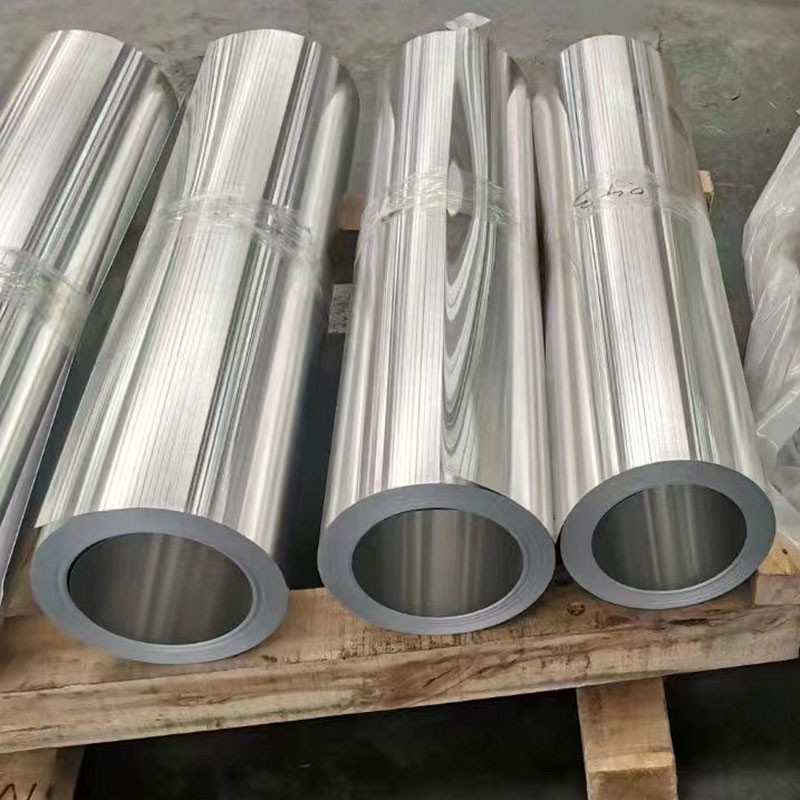

Aluminum Coil 6061

The combination of magnesium and silicon in 6061 aluminum allows it to be heat treated to higher strength levels. It has good formability when in the fully soft, annealed condition and the strength can be significantly increased following a heat treatment.

Alloy: 6061

Temper: O / T4 / T6 / T651 / T351 / T5

Produce to ASTM B209 or GB/T3880, EN485 standard;

Standard size: 4 x 8; 1219 x 2438mm, 1250 x 2500mm, 1500mm x 3000mm;

Surface: mill finish, unpolished, polished, black surface, bright surface,

6000 Series Alloy (Generally called Al-Mg-Si Alloy, the Mg and Si are used as main alloy elements )


6061 6063 6082


O F, etc.


Thickness≤170mm; Width≤2200mm ; Length≤12000mm


Automotive, Aluminium For Aviation, Industrial Mould, Mechanical Components,
Transport Ship, Semiconductor Equipments, etc


Good corrosion resistant performance, well welding property, good oxidability,
easy to spray-finishing, well oxidation coloring, good machinability.

6061-T6 Aluminum Alloy Plate Mechanical Properties Standard

TemperAnti –tensile strength N/m㎡Elongation rate(%)Dimension ControlSurfaceHardness
6061 T6290Mpa10QualifiedBlack / BrightAbove 95HB
6061 T651290Mpa10QualifiedBlack / BrightAbove 95HB
