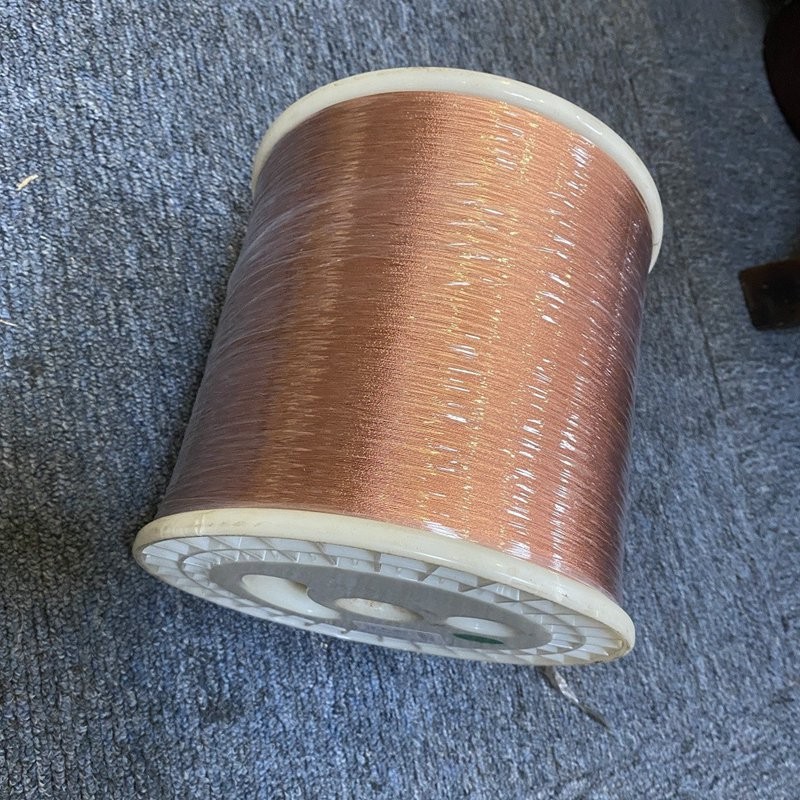

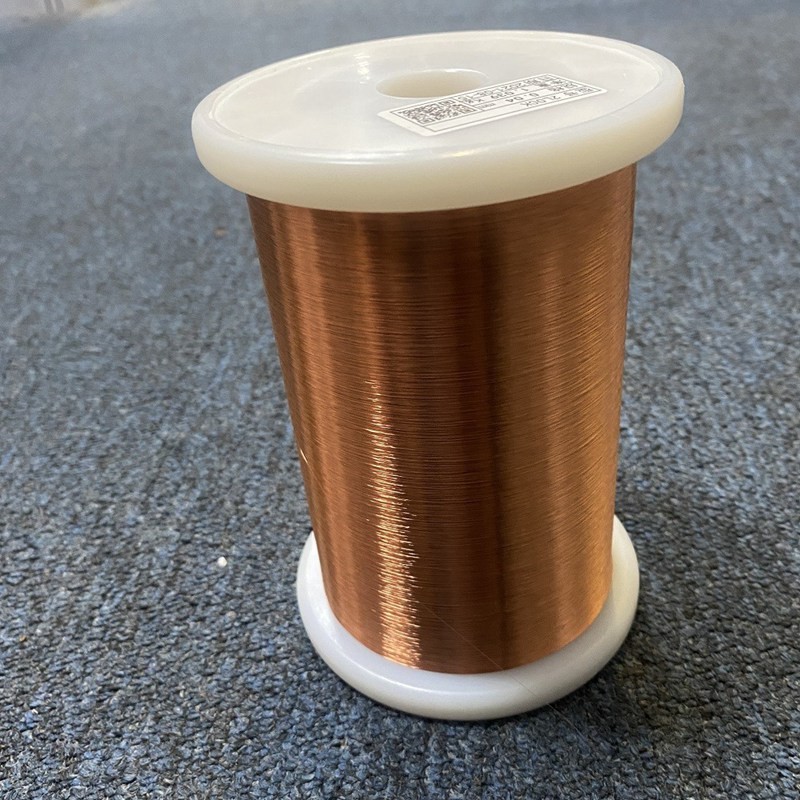

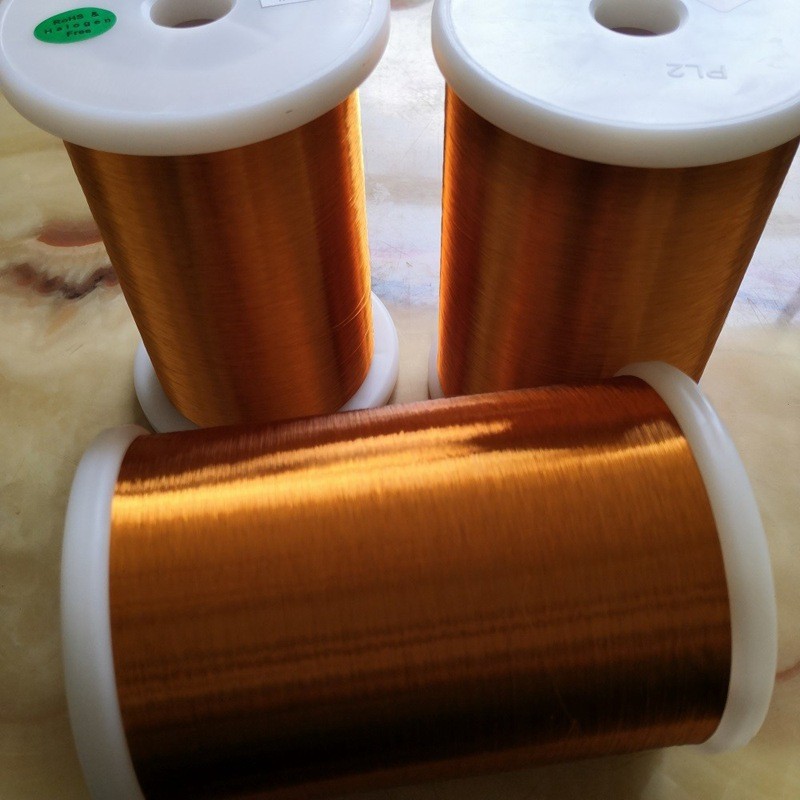

Self-Solderable Polyurethane Series UEW

Can be Soldered without removal of coating, and easy to be dyed
Small dielectric loss under high frequency apparatus and good pinhole test performance
Apply to relays, micro-motors, transformers, instrumentation and various kinds of electronic components and with for coils

Products main features and application

Can be Soldered without removal of coating, and easy to be dyed

Small dielectric loss under high frequency apparatus and good pinhole test performance

Apply to relays, micro-motors, transformers, instrumentation and various kinds of electronic components and with for coils

Thermal level		Speciﬁcations range		Standard
code	level	MM	AWG	IEC	GB/T	NEMA	JIS
B	130	0.04-1.8	13#-46#*	60317-4	6109.4	MW75-C	C3202
F	155			60317-20	6109.1	MW79-C
H	180			60317-51	6109.23	MW82-C
