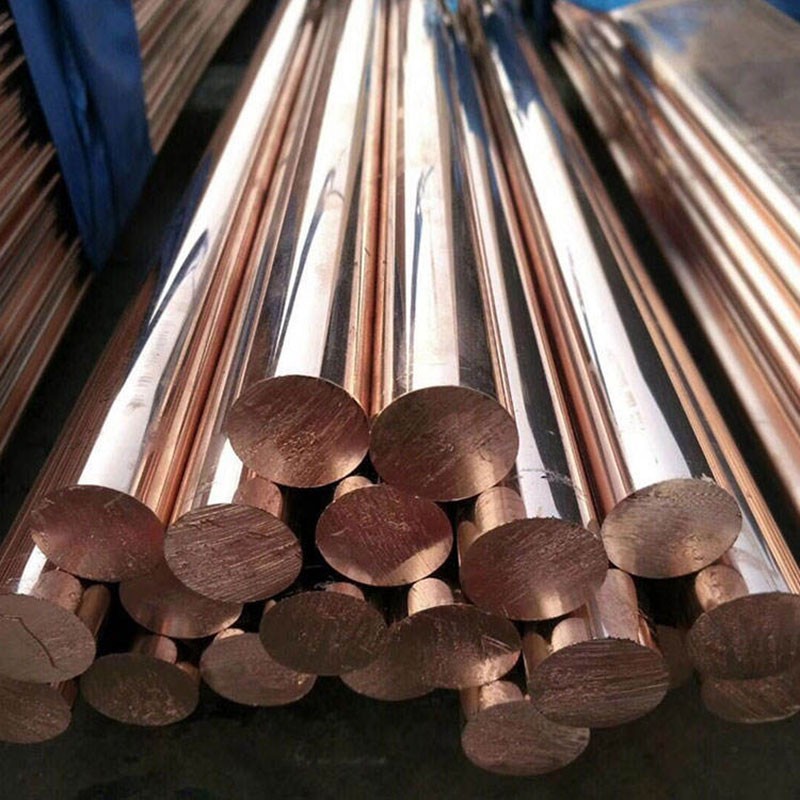

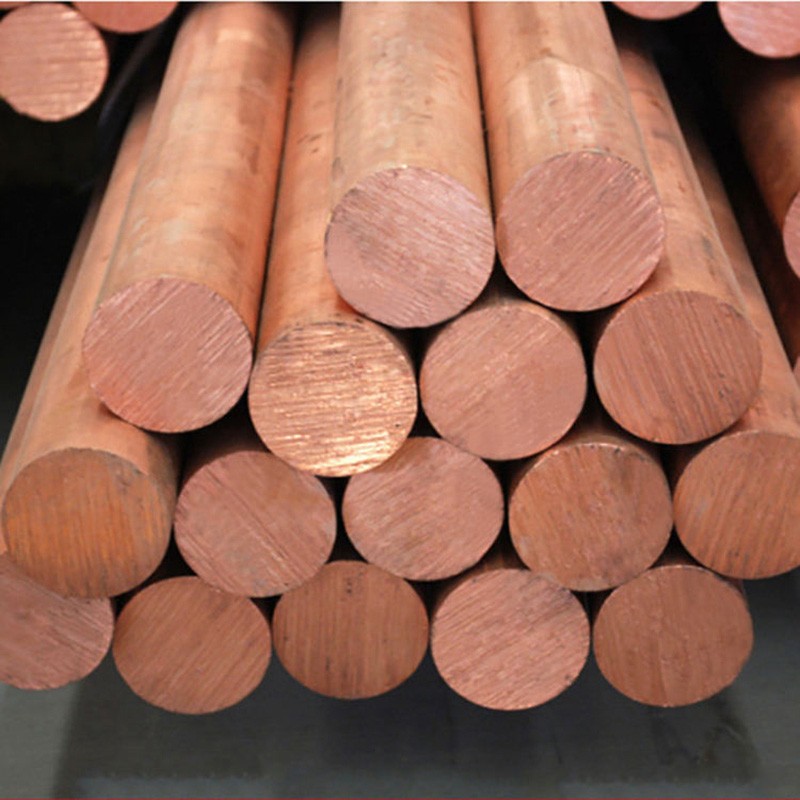

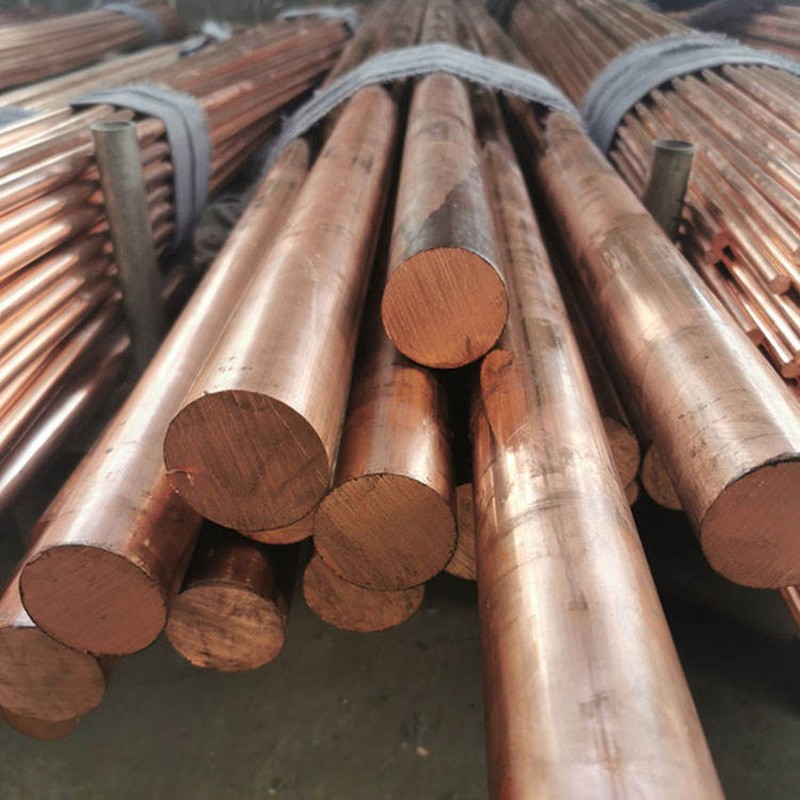

Copper Bar Rod T1 T2 T3 TU1 TU2

The use of red copper rod is much wider than that of pure iron. Every year, 50% of copper is electrolytic purified into pure copper, which is used in the electrical industry. The red copper mentioned here must be very pure and contain more than 99.95% copper. A small amount of impurities, especially phosphorus, arsenic and aluminum, will greatly reduce the conductivity of copper.

Copper bar is a kind of non-ferrous metal processing bar, which has good processing performance and high electrical conductivity. It is mainly divided into brass rod (copper zinc alloy, cheaper) and red copper rod (higher copper content). It is mainly used for air conditioning pipes, refrigerator pipes, oil pipes, water supply pipes and various mechanical supporting materials, automobile synchronizer gear rings, marine pumps, valves, structural parts, friction accessories, etc.

Grade

ASTM
C10100,C10200,C11000,C12000,C12200


JIS
C1011,C1020,C1100,C1201,C1220,C1221

EN
Cu-OFE, Cu-HCP, Cu-PHC, Cu-ETP, Cu-DHP, Cu-DLP;

CW009A, CW021A, CW020A, CW004A, CW024A, CW023A

DIN
OF-Cu, SE-Cu, E-Cu58, SF-Cu, SW-Cu.

Temper

Soft, 1/4 Hard, 1/2 Hard, Hard, Extra Hard

Size

Diameter: ≤ 500mm

Length: Straight ≤ 12000mm

Function & Application

Offering high electrical conductivity and form ability, 110 copper is 99.9% pure. Also known as ETP copper, it's often used in electrical applications, such as for bus bars and wire connectors, as well as for flashing, gaskets, and rivets.
